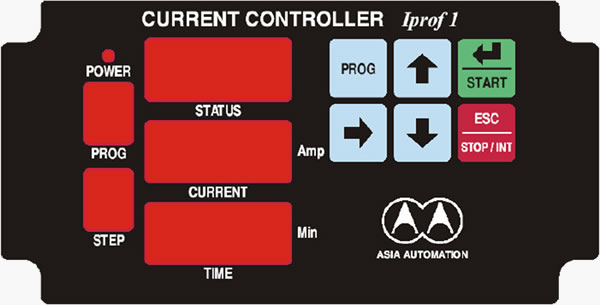

Controller For Formation Rectifier - IPROF Current Profile Controller

Profile generator "IPROF" is programmable controller suitable for battery manufacturing
Programmable current and time for charging, discharging and pause
Direct 75mV shunt interface for actual current feedback
Built in PI close loop adjusts the current reference output to set current

Large LED display for viewing status, programs from longer distance
Keyboard for selection and editing of program, execution control
Multiple program storage (9 factory programmed and 1 user programmable)
In cycle display of actual current and elapsed time
Memory retention: Automatic continuation of execution after power interruption
Loop command available for intermittent charge/discharge with time base in seconds
Cascading of programs - Continue command provides path to continue execution at other program, (Total 100 steps max.)
Automatic data output issued in charge, discharge and pause for external data logger
Additional data logging events can be generated with Data and EOF commands for external data logger
Terminal Voltage monitoring at display
Ampere / Hour measurement and display
