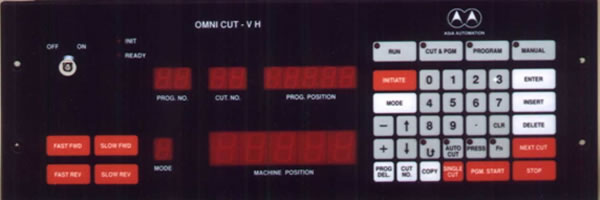

Paper cutting machine controller "OMINICUT"
Salient Features:
- Ideal for retrofit on POLAR, WHOLENBERG, PERFECTA-SEYPA, SCHNIDER, ITOH, LMM, COMO.
- Two speed motor/servo motor interface
- 99 programs storage facility
- International standard
- Inverter frequency control
- Fully automatic
Read More
OMNICUT CNC is a state of the art CNC for cutting machines. It is a microprocessor based system with international standard features and offers a functional and viable import substitute.
The OMNICUT – CNC Programmer is designed for precise positioning of the back gauge at pre-programmed cut marks. It's not just a back gauge controller but is a total machine controller. Each program contains complete cutting sequences to finish trim and lift of paper. After each cut the back gauge automatically moves to the next step i.e. next cut position in the sequence. The keyboard as well as cut & program – teach mode allows ease of programming even for complex jobs. The label cutting with trimming width is very simple because of special programming features. The industrial standard keyboard, display and DIN (German standard) modular design makes the operation and installation very simple and fast.
The OMNICUT – CNC Programmer is designed for precise positioning of the back gauge at pre-programmed cut marks. It's not just a back gauge controller but is a total machine controller. Each program contains complete cutting sequences to finish trim and lift of paper. After each cut the back gauge automatically moves to the next step i.e. next cut position in the sequence. The keyboard as well as cut & program – teach mode allows ease of programming even for complex jobs. The label cutting with trimming width is very simple because of special programming features. The industrial standard keyboard, display and DIN (German standard) modular design makes the operation and installation very simple and fast.
- Microprocessor based control system
- Step repetition of 99
- DIN (German standard)modular design
- Hunting / Search for final position
- Multiple programs (99) with multiple steps (64) facility
- Analog output +/- 10V for D.C. Drive (Optional)
- Interface for one / two speed A.C. motor with clutch brake arrangement
- CNC position control to give high precision
- Unidirectional positioning approach to eliminate Back Lash.
- Industrial standard fully sealed operator panel
- Easy to program - touch type Operator panel with Display for Mode, Target position, Actual position, Prog. No., Step No. etc.
- Teach (cut & program) mode for easy programming.
- Audio alarm & error display facility
- Fully automatic cutting operation possible
- Security lock key switch for program protection
- Pitch error compensation for lead screws gives better accuracy.
- In Position signal with audio indication.
- Metric / inch programming
- Eject of cut material
- Built in PLC offers flexibility to incorporate additional machine logic
- Greater accuracy, less rejection and increased productivity
- Manual mode provided easy setting
- Label cutting feature
- Infra red barrier interface for operator safety
- Two hand cutter operation for extra safety
- Built in logic for air table, pressure clamp etc.
- Backgauge moves only when knife/ cutter is up
- Elaborate alarms and self-diagnostics
- No. of cuts counter for production and knife usage
- On line TEACH IN (Cut & Program)
- Direct interfacing with DC servo drive for faster acceleration and increased position accuracy
